Deploy Mattermost on Kubernetes#

plans-img Available on Enterprise plans

deployment-img Cloud and self-hosted deployments

Mattermost server can be deployed on various Kubernetes platforms, providing a scalable and robust infrastructure for your team communication needs. This guide covers deployment options for major cloud providers and general Kubernetes installations.

Choose your preferred platform below for specific deployment instructions:

You can use the Mattermost Kubernetes Operator to deploy Mattermost on Kubernetes using S3-compatible storage and a managed database service. While the operator supports a range of configurations, we strongly recommend using a cloud-native approach for production environments.

Prerequisites

Before you begin, ensure you have the following:

  • A functioning Kubernetes cluster (see the Kubernetes setup guide). Your cluster should be running a supported Kubernetes version.

  • The kubectl command-line tool installed on your local machine (see the kubectl installation guide).

  • A fundamental understanding of Kubernetes concepts, such as deployments, pods, and applying manifests.

  • Sufficient Kubernetes resources allocated based on your expected user load. Consult the scaling for Enterprise documentation for resource requirements at different scales.

Installation steps

The installation process involves setting up necessary operators and then deploying Mattermost itself.

Step 1: Install the NGINX Ingress Controller

Follow the instructions in the Kubernetes deployment documentation to install the NGINX ingress controller on your Kubernetes cluster. Mattermost recommends installing the Nginx Operator via helm, regardless of platform you are installing to.

Step 2: Install the Mattermost Operator

The Mattermost Kubernetes Operator can be installed using Helm.

  1. Install Helm (version 3.13.0 or later). See the Helm quickstart documentation for installation instructions.

  2. Add the Mattermost Helm repository:

helm repo add mattermost https://helm.mattermost.com

  1. Create a file named config.yaml and populate it with the contents of the Mattermost operator values file. This file allows for customization of the operator.

  2. Create a namespace for the Mattermost Operator:

kubectl create ns mattermost-operator

  1. Install the Mattermost Operator. If you don’t specify a version, the latest version of the Mattermost Operator will be installed.

helm install <your-release-name> mattermost/mattermost-operator -n <namespace_name>

For example:

helm install mattermost-operator mattermost/mattermost-operator -n mattermost-operator

To use your custom config.yaml file:

helm install mattermost-operator mattermost/mattermost-operator -n mattermost-operator -f config.yaml

Step 3: Deploy Mattermost

Note

  • A Mattermost Enterprise license is required for multi-server deployments.

  • For single-server deployments without an Enterprise license, add Replicas: 1 to the spec section in step 2 below. See the high availability documentation for more on highly-available deployments.

  1. (Mattermost Enterprise only) Create a Mattermost license secret. Create a file named mattermost-license-secret.yaml with the following content, replacing [LICENSE_FILE_CONTENTS] with your actual license:

apiVersion: v1
kind: Secret
metadata:
  name: my-mattermost-license
type: Opaque
stringData:
  license: <LICENSE_FILE_CONTENTS>

  1. Create a Mattermost installation manifest file named mattermost-installation.yaml. File names in this guide are suggestions; you can use different names. Use the following template, adjusting the values as needed:

apiVersion: installation.mattermost.com/v1beta1
kind: Mattermost
metadata:
  name: <INSTALLATION_NAME_HERE>        # Example: mm-example-full
spec:
  size: <SIZE_VALUE_HERE>               # Example: 5000users
  ingress:
    enabled: true
    host: <FULL_DOMAIN_NAME_HERE>       # Example: example.mattermost-example.com
    annotations:
      kubernetes.io/ingress.class: nginx
version: <VERSION_HERE>               # Example: 9.3.0
licenseSecret: ""                     # If you created a license secret, put the name here

Key fields in the manifest include:

  • metadata.name: The name of your Mattermost deployment in Kubernetes.

  • spec.size: The size of your installation (e.g., “100users”, “1000users”, etc.).

  • spec.ingress.host: The DNS name for your Mattermost installation.

  • spec.version: The Mattermost version. See the server version archive for available versions.

  • spec.licenseSecret: The name of the Kubernetes secret containing your license (required for Enterprise).

For a full list of configurable fields, see the example manifest and the Custom Resource Definition.

  1. Create a file named mattermost-database-secret.yaml for database credentials. This secret must be in the same namespace as the Mattermost installation.

apiVersion: v1
data:
  DB_CONNECTION_CHECK_URL: <DB_CONNECTION_CHECK_URL>
  DB_CONNECTION_STRING: <DB_CONNECTION_STRING>
  MM_SQLSETTINGS_DATASOURCEREPLICAS: <MM_SQLSETTINGS_DATASOURCEREPLICAS>
kind: Secret
metadata:
  name: my-postgres-connection
type: Opaque

Example for AWS Aurora with PostgreSQL:

apiVersion: v1
data:
  DB_CONNECTION_CHECK_URL: cG9zdGdyZXM6Ly91c2VyOnN1cGVyX3NlY3JldF9wYXNzd29yZEBteS1kYXRhYmFzZS5jbHVzdGVyLWFiY2QudXMtZWFzdC0xLnJkcy5hbWF6b25hd3MuY29tOjU0MzIvbWF0dGVybW9zdD9jb25uZWN0X3RpbWVvdXQ9MTAK
  DB_CONNECTION_STRING: cG9zdGdyZXM6Ly91c2VyOnN1cGVyX3NlY3JldF9wYXNzd29yZEBteS1kYXRhYmFzZS5jbHVzdGVyLWFiY2QudXMtZWFzdC0xLnJkcy5hbWF6b25hd3MuY29tOjU0MzIvbWF0dGVybW9zdD9jb25uZWN0X3RpbWVvdXQ9MTAK
  MM_SQLSETTINGS_DATASOURCEREPLICAS: cG9zdGdyZXM6Ly91c2VyOnN1cGVyX3NlY3JldF9wYXNzd29yZEBteS1kYXRhYmFzZS5jbHVzdGVyLXJvLWFiY2QudXMtZWFzdC0xLnJkcy5hbWF6b25hd3MuY29tOjU0MzIvbWF0dGVybW9zdD9jb25uZWN0X3RpbWVvdXQ9MTAK
kind: Secret
metadata:
  name: my-postgres-connection
type: Opaque

Step 4: Create the Filestore Secret

Create a file named mattermost-filestore-secret.yaml to store the credentials for your object storage service (e.g., AWS S3, MinIO). This secret must be created in the same namespace where you intend to install Mattermost. The file should contain the following YAML structure:

apiVersion: v1
kind: Secret
metadata:
  name: <secret-name>  # Choose a descriptive name (e.g., my-s3-credentials)
type: Opaque
data:
  accesskey: <base64-encoded-access-key>
  secretkey: <base64-encoded-secret-key>

Key

Description

Required

accesskey

Base64-encoded access key for your storage service.

Yes

secretkey

Base64-encoded secret key for your storage service.

Yes

metadata.name

The name of the Kubernetes secret.

Yes

Important

The accesskey and secretkey values must be base64-encoded. Do not enter the raw keys directly. Use a command-line tool or online encoder to generate the base64 strings.

Example (AWS S3):

apiVersion: v1
kind: Secret
metadata:
  name: my-s3-credentials
type: Opaque
data:
  accesskey: QUNDRVNTX0tFWQo=  # Example: Replace with your actual encoded key
  secretkey: U1VQRVJfU0VDUkVUX0tFWQo=  # Example: Replace with your actual encoded key

Step 5: Configure the Mattermost Installation Manifest

  1. Modify the mattermost-installation.yaml file (created in step 2) to connect Mattermost to your external database and object storage. Refer to the supported fields for guidance on where to add these configurations within the YAML structure.

  2. Connect to the database:

  1. Add the following to the spec section of your manifest:

spec:
  database:
    external:
      secret: <database-secret-name>  # The name of the database secret (e.g., my-postgres-connection)

  1. Connect to Object Storage:

  1. Add the following to the spec section of your manifest:

spec:
  fileStore:
    external:
      url: <storage-service-url>  # The URL of your storage service (e.g., s3.amazonaws.com)
      bucket: <bucket-name>      # The name of your storage bucket
      secret: <filestore-secret-name> # The name of the filestore secret (e.g., my-s3-credentials)

  1. If you are using Amazon S3, it’s recommended to enable server-side encryption (SSE) and SSL. Add the following environment variables to the mattermostEnv section:

spec:
  mattermostEnv:
    MM_FILESETTINGS_AMAZONS3SSL: true
    MM_FILESETTINGS_AMAZONS3SSE: true

Review Mattermost Resource Status

After a Mattermost installation has been created with the Operator, you can review its status with the following:

kubectl -n [namespace] get mattermost

The kubectl describe command can be used to obtain more information about the Mattermost server pods:

kubectl -n [namespace] describe pod

Follow logs

The following command can be used to follow logs on any kubernetes pod:

kubectl -n [namespace] logs -f [pod name]

If the -n [namespace] is omitted, then the default namespace of the current context is used. We recommend specifying the namespace based on your deployment.

This command can be used to review the Mattermost Operator or Mattermost server logs as needed.

Note

  • If you’re new to Kubernetes or prefer a managed solution, consider using a service like Amazon EKS, Azure Kubernetes Service, Google Kubernetes Engine, or DigitalOcean Kubernetes.- While this guidance focuses on using external, managed services for your database and file storage, the Mattermost Operator does offer the flexibility to use other solutions. For example, you could choose to deploy a PostgreSQL database within your Kubernetes cluster using the CloudNative PG operator (or externally however you wish), or use a self-hosted MinIO instance for object storage.

  • While using managed cloud services is generally simpler to maintain and our recommended approach for production deployments, using self-managed services like MinIO for storage and CloudNative PG for PostgreSQL are also valid options if you have the expertise to manage them.

  • If you choose to use self-managed components, you’ll need to adapt the instructions accordingly, pointing to your internal services instead.

  • To customize your production deployment, refer to the configuration settings documentation.

  • If you encounter issues during deployment, consult the deployment troubleshooting guide.

You can use a supported Azure Marketplace Container Offer to install Mattermost on your existing Azure infrastructure.

Before you begin

Before deploying, make sure you have the following:

  • An AKS cluster: with the Application Gateway Ingress Controller (AGIC) add-on enabled or another Ingress controller deployed.

  • PostgreSQL v13.0+ database: Azure Database for PostgreSQL - Flexible Server with Private Access is recommended. Deploy one by following this Microsoft quick start guide.

  • Private Network Connectivity: Verify that there is network connectivity between your AKS cluster and the PostgreSQL database.

  • Valid DNS name and TLS certificate: You must have access to a DNS zone and provide a valid TLS key and certificate for the Ingress Controller.

  • Node Capacity: At least 2 AKS nodes for high availability when deploying for 100 users or more.

  • License Key: Trial or Enterprise license to test high availability and other Enterprise features.

Installation steps

The installation process includes deploying Mattermost and updating the server.

Step 1: Deploy Mattermost

  1. Deploy Mattermost from the Azure Marketplace Container Offer and select Get it now.

  1. Choose the Resource Group and the Region of your installed AKS and PostgreSQL database.

An example of the Azure AKS Project details screen.

  1. Choose your AKS cluster.

An example of the Azure AKS cluster setup screen.

  1. Fill in the details for your PostgreSQL database. Ensure the user specified has full access.

An example of the Azure AKS Database setup screen.

  1. Specify Deployment Details including Deployment Name and Deployment Size. Click the checkbox to Deploy Minio, a required utility for this installation that will provide filestore functionality for your Mattermost instance.

An example of the Azure AKS Deployment Details setup screen.

  1. Configure Mattermost installation hostname and Ingress details. The AGIC add-on is used in the following example to show the ingress annotations required.

  1. You can use any pre-installed Ingress Controller in your cluster as long as it supports Kubernetes Ingress and TLS termination.

kubernetes.io/ingress.class: azure/application-gateway
appgw.ingress.kubernetes.io/ssl-redirect: "true"

  1. Additionally, we recommend considering:

  1. Enforcing a minimum TLS version (e.g., TLS 1.2).

  2. Deploying a Web Application Firewall (WAF) for additional protection, if supported by your ingress controller.

  3. Limiting access using Kubernetes Network Policies.

An example of the Azure AKS Networking Details setup screen.

  1. Ensure that everything is running. You should be able to check the installed plugin from the AKS Extensions + Applications page under the Settings menu.

  1. When the deployment is complete, obtain the hostname or IP address of your Mattermost deployment using the following command:

kubectl -n mattermost-operator get ingress

  1. Use your IP address from the ADDRESS column, and create a DNS record in your domain registration service.

  2. Access your working Mattermost installation at the URL you’ve determined in your DNS record.

Learn more about administrating your Mattermost server by visiting the Administration Guide.

Step 2: Upgrade Mattermost via your AKS cluster

  1. Visit the Extensions + Applications section of your AKS cluster where your Mattermost installation is deployed.

  2. You can enable minor version auto upgrades since these are not updating Mattermost version

  3. Expand the Configuration Settings table and add the below configuration and the version you want to install as a value.

 global.azure.mattermost.version

.. image:: /_static/images/global-azure-mattermost-version.png
 :alt: An example of using custom Mattermost version.

  1. Select Save and wait for the upgrade.

Important

You are responsible for Azure costs associated with any infrastructure you spin up to host a Mattermost server, and Azure credits cannot be applied towards the purchase of a Mattermost license.

You can use the supported Oracle Cloud Marketplace listing to install Mattermost Enterprise Edition on Oracle Cloud Infrastructure (OCI) using Oracle Kubernetes Engine (OKE).

Before you begin

Before deploying, make sure you have the following:

  • Oracle Cloud Account with appropriate permissions

  • Permissions to create/manage OKE, Compute, Networking, Database, Resource Manager, and Secrets

  • Compartment for deployment

  • Domain Name and TLS Certificate for secure access

  • Mattermost License Key (Trial or Enterprise)

  • Node Capacity: At least 2 OKE nodes for high availability when deploying for 100 users or more

Installation steps

The installation process includes deploying Mattermost and configuring the necessary components.

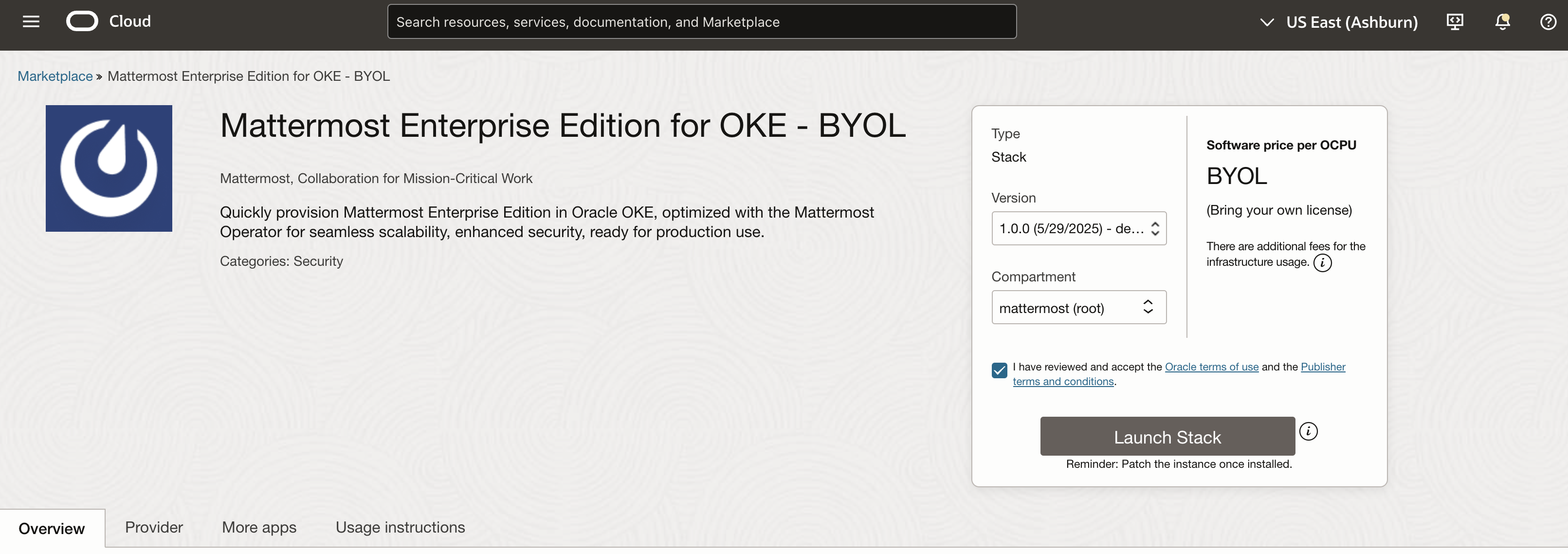

Step 1: Start from Oracle Cloud Marketplace

Go to the Mattermost listing and select Launch Stack.

Oracle Cloud Marketplace listing for Mattermost

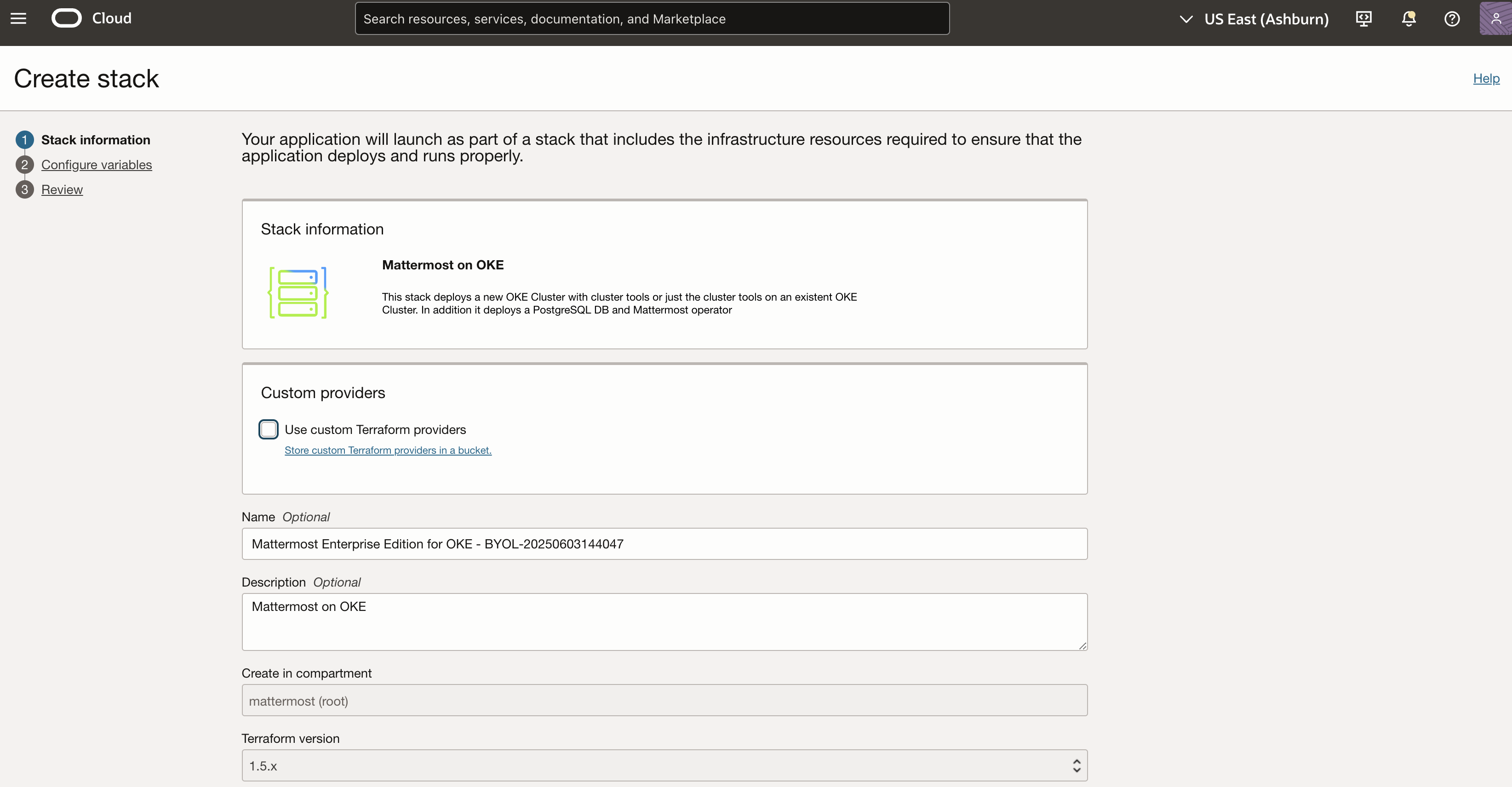

Step 2: Stack Information

On the Create stack page, review the information, and then set the name, compartment, and Terraform version.

Stack information page

Step 3: Configure Variables

Set all the details for your Mattermost deployment. Each section is important for a successful and secure installation.

OKE Cluster Configuration

  • Create new OKE Cluster:

    • Check this if you want to create a new Kubernetes cluster.

    • If you already have a cluster, you can uncheck and select your existing one.

  • Kubernetes Version:

    • Choose the latest stable version unless you have a specific requirement.

  • Node Pool Shape (Flex/Fixed):

    • Select a shape that fits your workload. For production, use at least 2 OCPUs and 16GB RAM per node.

  • Number of Nodes:

    • Minimum 2 for high availability. For testing, 1 is enough. For production environments, always use at least 2 nodes and enable high availability.

  • Operating System:

    • Oracle Linux 8 is recommended for best compatibility.

OKE Network Configuration

  • Worker Node Visibility:

    • Private is more secure for production. Public is easier for testing. For production environments, use private nodes and restrict access to the API endpoint.

  • API Endpoint Visibility:

    • Public allows you to manage the cluster from anywhere. Private is more secure but requires VPN or bastion.

  • Create new Virtual Cloud Network (VCN):

    • Check this to create a new network, or uncheck to use an existing one.

  • VCN CIDR Block:

    • Set a unique network range (e.g., 10.20.0.0/16). Avoid overlap with other networks.

OKE Worker Nodes

  • Enable Cluster Autoscaler:

    • Allows the cluster to automatically add or remove nodes based on usage.

  • Initial/Min Number of Worker Nodes:

    • Set the minimum number of nodes. For high availability, use at least 2. Autoscaling helps manage costs and performance automatically.

  • Node Shape:

    • Choose a shape (e.g., VM.Standard.E4.Flex) and set OCPUs and memory.

  • Auto Generate SSH Key:

    • Enable this if you do not have your own SSH key for node access.

  • Image OS and Version:

    • Oracle Linux 8 is recommended.

PostgreSQL Configuration

  • Admin Username:

    • The main user for your PostgreSQL database (e.g., admin1).

  • Password Type:

    • PLAIN_TEXT for testing, SECRET for production (uses Oracle Vault). Always use Oracle Vault for production passwords.

  • Password/Secret Name:

    • Enter a strong password or the name of a secret in Oracle Vault.

  • Database Password:

    • Required if not using a secret.

General Configuration

  • Cluster Name Prefix:

    • Used to identify all resources (e.g., mm-oke).

  • Show Advanced Options:

    • Enable for more control (encryption keys, SSH keys, etc.). Use advanced options if you need custom encryption or want to manage your own SSH keys.

  • PostgreSQL Deployment Strategy:

    • Use “Database For PostgreSQL” for managed service.

  • Object Storage for File Storage:

    • Enable to use OCI Object Storage for Mattermost files.

  • Mattermost Version:

    • Use the latest stable version.

  • Namespace:

    • Default is mattermost.

  • License Key:

    • Upload or paste your Mattermost license.

  • Helm Repository:

    • Default is https://helm.mattermost.com.

Step 4: Review and Apply

Check all your settings and select Create to start the deployment. Monitor the Resource Manager job and logs.

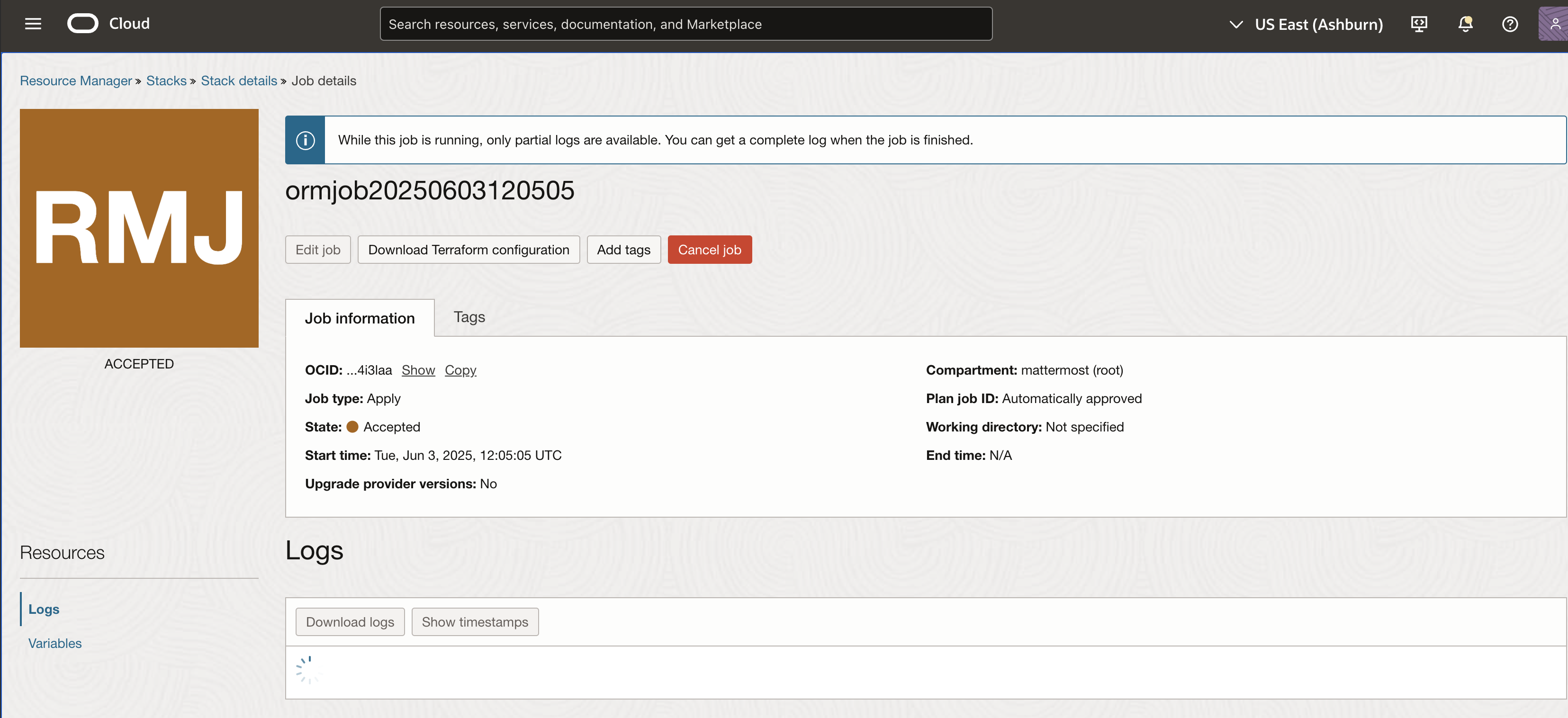

Resource Manager job monitor

Step 5: After Deployment

When the job is finished, your OKE cluster, PostgreSQL database, and Mattermost will be ready. To find the Mattermost web address, run:

kubectl -n mattermost-operator get ingress

Copy the address and create a DNS record for your domain. Open your browser and go to your Mattermost URL.

Step 6: Upgrade Mattermost

To upgrade your Mattermost installation:

  1. Access your OKE cluster through the Oracle Cloud Console

  2. Navigate to the Mattermost operator deployment

  3. Update the Mattermost version in the configuration

  4. Apply the changes and wait for the upgrade to complete

Tip

Tips for Success

  • Make sure you have all the permissions you need before you start.

  • Use Oracle Vault to store passwords and sensitive data.

  • Use private nodes and secure your network for production.

  • Always monitor logs from the Resource Manager and pods using kubectl logs for more specific error messages.

  • For more details, see the official OCI Database with PostgreSQL documentation and OKE documentation.

Common Errors and How to Avoid Them

  • Error: Kubernetes API not reachable

    • Cause: API endpoint is private and you’re not connected to the VCN via VPN or Bastion.

    • Solution: Ensure you have access to the network or make the endpoint public for testing.

  • Error: Stack creation fails with missing permissions

    • Cause: IAM policies are not set properly for the user or group.

    • Solution: Ensure you have permissions for Resource Manager, OKE, Networking, and Secrets.

  • Error: No ingress returned by kubectl

    • Cause: Mattermost Ingress might not be ready or was misconfigured.

    • Solution: Check with kubectl describe ingress and validate DNS, TLS, and Helm values.

  • Error: PostgreSQL password rejected

    • Cause: Password not set or mismatched with Oracle Vault.

    • Solution: Re-check the password value or Vault secret used during setup.

Important

You are responsible for Oracle Cloud Infrastructure costs for the resources you create. Oracle Cloud credits cannot be used to buy a Mattermost license.

Learn more about managing your Mattermost server by visiting the Administration Guide.

Frequently Asked Questions#

Why are my pods failing with a CrashLoopBackOff error after adding a custom CA certificate to my Docker image?#

You may see a CrashLoopBackOff error after adding a custom CA certificate to your Docker image’s /etc/ssl/certs directory and deploying it to your Kubernetes environment via the Mattermost Enterprise Edition Helm Chart. This issue typically arises because the custom CA certificate is not being recognized by the system’s certificate trust store, leading to TLS handshake failures when the application attempts to connect to services that require the custom CA.

While core functionality may remain operational, you may notice the following symptoms:

  • Pods stuck in a crashloop with the error message: backoff - restarting failed container in pod.

  • Debugging commands like kubectl describe and kubectl logs provide little to no valuable information.

  • Integrations may be blocked.

Can I resolve this issue without rebuilding the Docker image?#

Yes. We recommend using Kubernetes-native solutions to manage custom CA certificates to simplify deployment processes and minimize disruptions caused by image rebuilds. You can inject the certificate directly into the pod using Kubernetes resources instead of modifying the Docker image to manage custom CA certificates dynamically without needing to rebuild and redeploy your Docker image every time the certificate changes.

Use a Kubernetes secret to store your custom CA certificate and then mount it into the pod:

  1. Create a Kubernetes secret with your custom CA certificate.

  2. Mount the certificate into the pod using the Helm chart’s configuration options. This method simplifies management and avoids the need to rebuild your Docker image for future certificate updates.

Alternatively, to dynamically inject certificates without modifying the Docker image, use an initContainer to copy the certificate into the pod’s filesystem and update the certificate trust store before the main container starts.

How to troubleshoot the root cause of the CrashLoopBackOff error?#

Use kubectl describe pods to check detailed event logs.

Consider logging tools like Grafana to aggregate and analyze logs for additional insights.

Where is data stored in a self-hosted Kubernetes deployment?#

Where data is stored depends on the backend database (such as RDS, Azure Postgres, self-hosted PostgreSQL), and the backend filestore (such as AWS S3, Minio, Mounted volume) configured during deployment.

We recommend the following S3 Options:

  • AWS S3

  • MinIO (Self-Hosted)

For Volume Mounts, the following options use Kubernetes Volume Mounting to provide filestores as a “local” directory to the Mattermost server:

  • NFS

  • AzureBlob

Not all types of Kubernetes persistent volumes have been tested with Mattermost, and some may have limitations or specific configurations that may require additional setup to ensure proper permissions and access. We recommend system admins review documentation for their preferred persistent volume types and test to ensure compatibility with Mattermost.
